Types of Superstructure in building construction

1. Frame Structure Superstructure

A frame structure superstructure is one of the most common types used in modern building construction. It consists of a skeleton framework made of vertical columns and horizontal beams that support the building’s load. These frames can be constructed using different materials such as concrete, steel, or timber.

Key Components:

• Columns: Vertical elements that bear the load from the building’s upper floors.
• Beams: Horizontal elements that transfer the loads from floors to columns.
• Slabs: Horizontal surfaces that form the floors and ceilings of a building.

Advantages:

• Flexibility: Frame structures provide greater flexibility in terms of design and layout, as the internal walls are not load-bearing.
• Efficiency: These structures allow for the construction of tall buildings, as the frame can support a significant amount of weight.
• Speed: The construction process is faster because the frame can be built quickly with prefabricated materials.

Frame structures are commonly used for high-rise buildings, office buildings, and residential complexes.

2. Load-Bearing Wall Superstructure

The load-bearing wall superstructure is one of the oldest forms of building construction. In this type, the walls themselves support the weight of the building, including the floors, roof, and external loads. Load-bearing wall structures are commonly found in low-rise buildings, houses, and small apartment complexes.

Key Components:

• Walls: Thick masonry or concrete walls that bear the weight of the structure.
• Floors and Roofs: Supported by the walls to transfer the loads evenly.

Advantages:

• Simplicity: Load-bearing wall construction is simple and easy to implement, especially for small buildings.
• Cost-Effective: These structures require less complex designs, making them more affordable to build.
• Stability: The walls themselves provide stability and can help reduce movement caused by wind or earthquakes.

While load-bearing wall structures are less commonly used for taller buildings, they are ideal for small residential homes and low-rise structures.

3. Steel Frame Superstructure

Steel frame superstructures are widely used for commercial and industrial buildings due to their strength, durability, and versatility. In this type of construction, steel columns, beams, and trusses are used to create a sturdy framework that supports the entire building. Steel frame superstructures are often used for skyscrapers, factories, and large office buildings.

Key Components:

• Steel Columns: Vertical elements that support the load of the building.
• Steel Beams: Horizontal elements that transfer the weight to the columns.
• Steel Trusses: Triangular frameworks used to support roofs and floors.

Advantages:

• Strength: Steel is incredibly strong and can support large loads, making it ideal for tall buildings.
• Speed: Steel frame construction is faster compared to other methods because steel components can be prefabricated and assembled on-site.
• Flexibility: Steel frames allow for larger open spaces within the building, making them suitable for commercial and office spaces.

Steel frame structures are particularly popular for buildings that need to be fire-resistant, have large open floor plans, and require high load-bearing capacity.

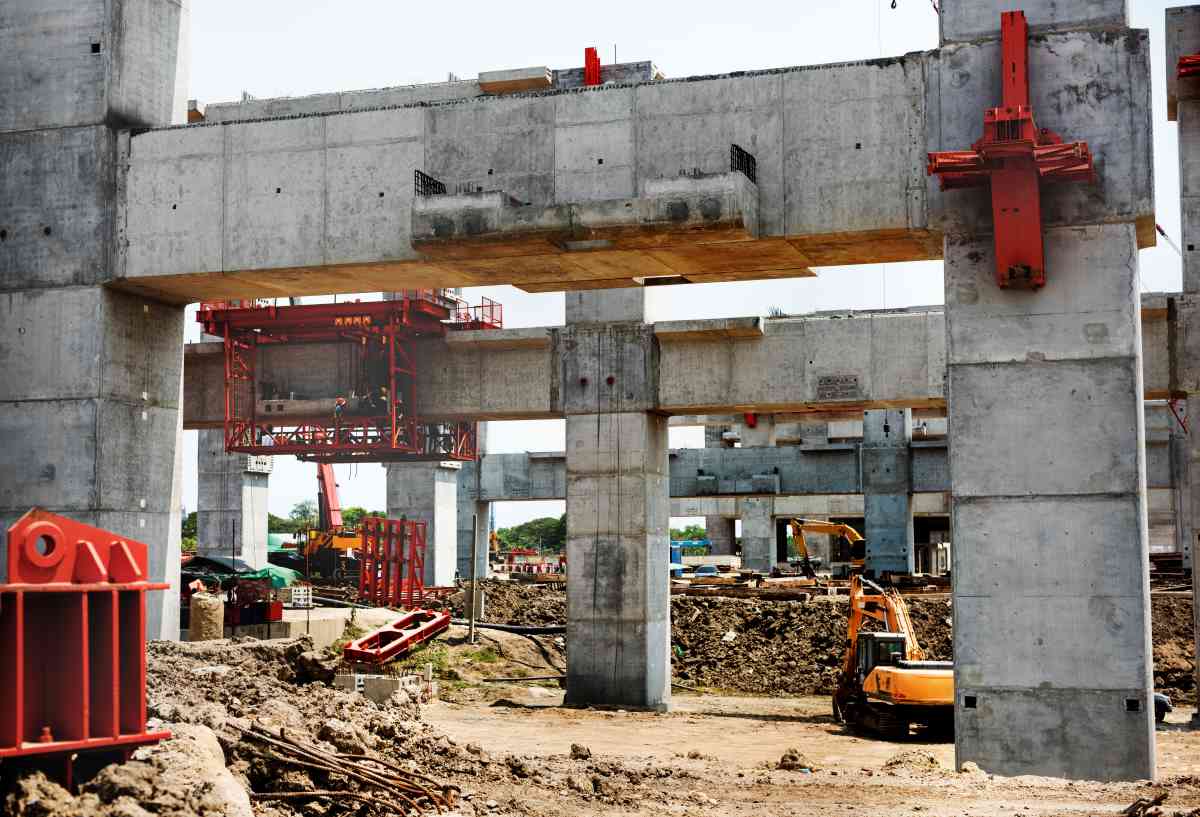

4. Concrete Frame Superstructure

Concrete frame superstructures are similar to steel frame structures but use reinforced concrete instead of steel. These frames are constructed with concrete columns, beams, and slabs, which provide the structural integrity of the building. Concrete frame construction is commonly used for both residential and commercial buildings.

Key Components:

• Reinforced Concrete Columns: Vertical supports that bear the weight of the building.
• Concrete Beams: Horizontal beams that distribute the load to the columns.
• Concrete Slabs: Floors and ceilings made from reinforced concrete.

Advantages:

• Durability: Concrete is highly durable and resistant to weathering, making it ideal for long-lasting structures.
• Fire Resistance: Concrete is non-combustible, making it a fire-resistant material.
• Sound Insulation: Concrete helps in reducing sound transmission, making it ideal for buildings in noisy areas.

Concrete frame superstructures are ideal for both low-rise and high-rise buildings, offering strength and stability, especially in areas with seismic activity.

5. Hybrid Superstructure

A hybrid superstructure combines different materials and construction methods to take advantage of the strengths of each. This type of superstructure is often used for buildings where specific requirements demand a combination of materials, such as steel, concrete, and timber.

Key Components:

• Steel and Concrete: A mix of steel frames and concrete floors and columns.
• Timber: Used in combination with concrete or steel for specific design purposes.

Advantages:

• Versatility: Hybrid superstructures offer design flexibility, allowing for better customization.
• Sustainability: Using timber in combination with concrete or steel can reduce the overall carbon footprint of the building.
• Cost-Effective: The use of different materials allows for optimized construction costs.

Hybrid superstructures are ideal for buildings that require a balance between strength, sustainability, and cost.

6. Timber Frame Superstructure

Timber frame superstructures are commonly used in residential construction, particularly in suburban areas. Timber, being lightweight and sustainable, offers an eco-friendly option for building homes, townhouses, and low-rise structures.

Key Components:

• Timber Columns: Vertical supports made from timber or wood.
• Timber Beams: Horizontal beams used to distribute the load.
• Wooden Slabs: Floors and ceilings made of timber or plywood.

Advantages:

• Sustainability: Timber is a renewable resource and has a lower carbon footprint compared to other materials.
• Aesthetic Appeal: Wood provides a natural, warm aesthetic that is desirable for residential buildings.
• Lightweight: Timber is lighter than steel or concrete, making it easier and faster to construct.

Timber frame superstructures are ideal for small-scale residential buildings and low-rise structures where environmental impact and aesthetics are important.
